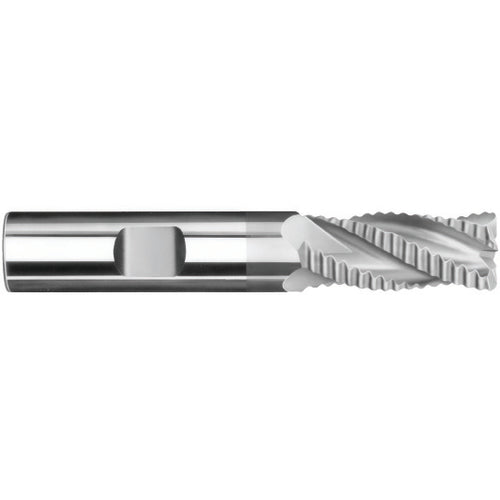

1/4 End Mill 3FL .045R TN - SER 61S 1/4x1/4x3/4x2-1/2
Item #: DD9236107
Brand: KYOCERA SGS Precision Tools
Model #: 36107
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Usable Length (LU) | 1-3/4″ |
| Overall Length (OAL) | 2-1/2″ |
| Corner Radius (RE) | 0.045″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 40 Degrees |
| Measurement Type | Inch |
