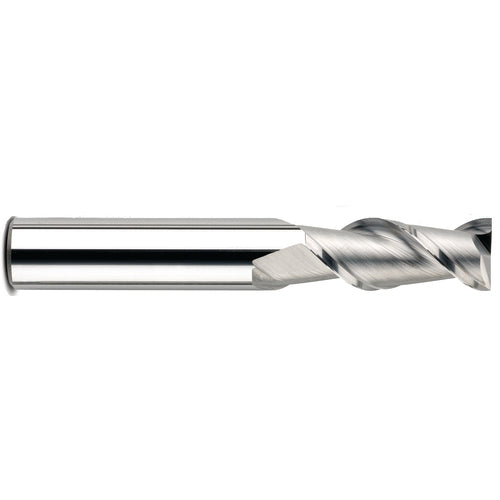

1/4 End Mill 2FL SQ TB WF - SKI-CARB 1/4x3/8x1-1/4x3-1/16
Item #: DD9234504
Brand: KYOCERA SGS Precision Tools
Model #: 34504
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Shank Type | Flatted |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Usable Length (LU) | 1.687″ |
| Overall Length (OAL) | 3-1/16″ |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TB |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Inch |
