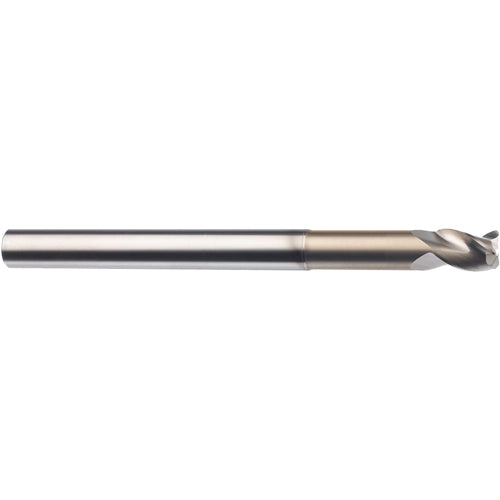

5/16 End Mill 3FL .030R - S-CARB 5/16x5/16x7/16x4
Item #: DD9232760
Brand: KYOCERA SGS Precision Tools
Model #: 32760
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 7/16″ |
| Usable Length (LU) | 3-9/16″ |
| Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | Uncoated |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | S-CARB |
