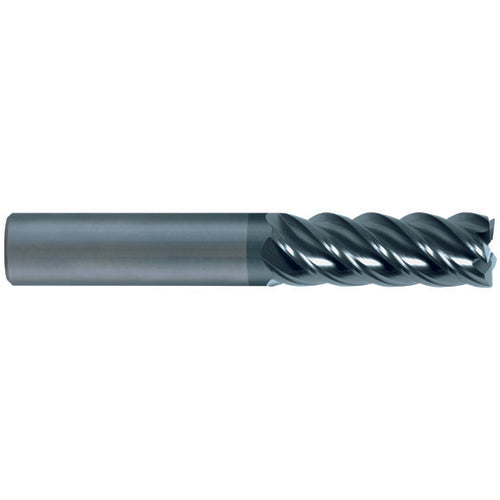

3/16 End Mill 5FL SQ TA - V-CARB 3/16x3/16x5/16x2
Item #: DD9232673
Brand: KYOCERA SGS Precision Tools
Model #: 32673
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Usable Length (LU) | 1-11/16″ |
| Depth of Cut Maximum (APMX) | 5/16″ |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TA |
| Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | V-CARB |
| Shank Type | Round |
