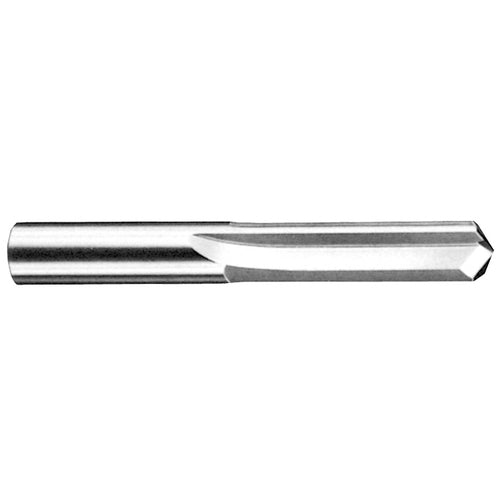

7 mm Dia. × 7 mm Shank × 34 mm Flute Length × 74 mm OAL, 3xD, 140°, Uncoated, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9166023
Brand: KYOCERA SGS Precision Tools
Model #: 66023
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 7 mm |
| Tool Type | Drill |
| Decimal Equivalent | 0.2756″ |
| Length Below Shank | 40 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7 mm |
| Flute Type | Straight |
| Length Group | 3xD |
| Measurement Type | Metric |
| Coating | Uncoated |
| Series/List # | 106 |
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Usable Length (LU) | 25 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 34 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 74 mm |
| Flute Helix Angle (FHA) | 0 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
