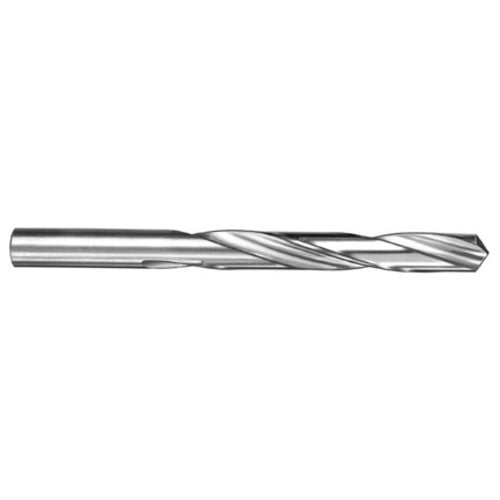

#42 Dia. × 0.0935″ Shank × 1″ Flute Length × 2″ OAL, 5xD, 118°, TA, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9157119
Brand: KYOCERA SGS Precision Tools
Model #: 57119
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #42 |
| Tool Type | Drill |
| Decimal Equivalent | 0.0935″ |
| Length Below Shank | 1″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #42 |
| Flute Type | Spiral |
| Length Group | 5xD |
| Measurement Type | Wire Gauge |
| Coating | TA |
| Series/List # | 101 |
| Connection Diameter Machine Side (DCONMS) | 0.0935″ |
| Usable Length (LU) | 0.7969″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 1″ |
| Point Angle (SIG) | 118 Degrees |
| Overall Length (OAL) | 2″ |
| Flute Helix Angle (FHA) | 20 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
