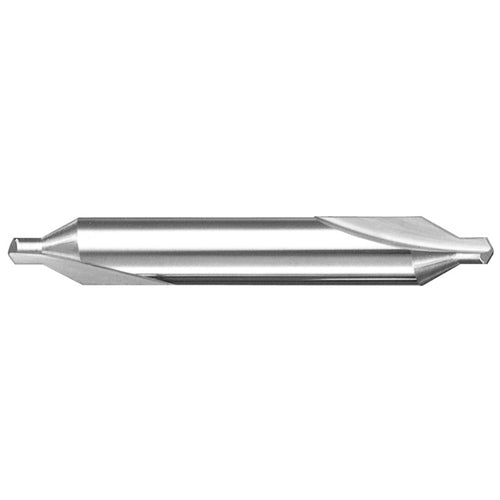

#4 × 2-1/8″ OAL 60 Degree Carbide Plain Combined Drill and Countersink Uncoated
Item #: DD9157010
Brand: KYOCERA SGS Precision Tools
Model #: 57010
| Product Specifications | |
|---|---|
| Style | Plain |
| Coating | Uncoated |
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ |
| Size | #4 |
| Decimal Equivalent | 0.125″ |
| Measurement Type | Fractional |
| Point Angle (SIG) | 60 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Angle | 60 Degrees |
| Tool Type | Combined Drill and Countersink |
| Flute Count (NOF) | 2 |
| Cutting Length | 3/4″ |
| Overall Length (OAL) | 2 1/8″ |
| Shank Length (LS) | 0.62″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Series/List # | 301 |
