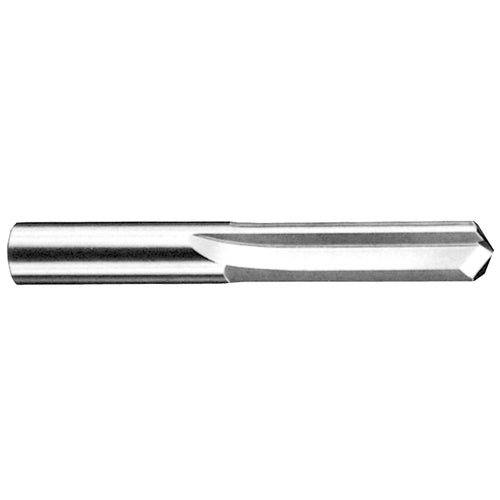

#22 Dia. × 0.157″ Shank × 1-1/16″ Flute Length × 2-1/8″ OAL, 3xD, 140°, TA, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9156231
Brand: KYOCERA SGS Precision Tools
Model #: 56231
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #22 |
| Tool Type | Drill |
| Decimal Equivalent | 0.157″ |
| Length Below Shank | 1.128″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #22 |
| Flute Type | Straight |
| Length Group | 3xD |
| Measurement Type | Wire Gauge |
| Coating | TA |
| Series/List # | 106 |
| Connection Diameter Machine Side (DCONMS) | 0.157″ |
| Usable Length (LU) | 0.8594″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 1-1/16″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 2-1/8″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
