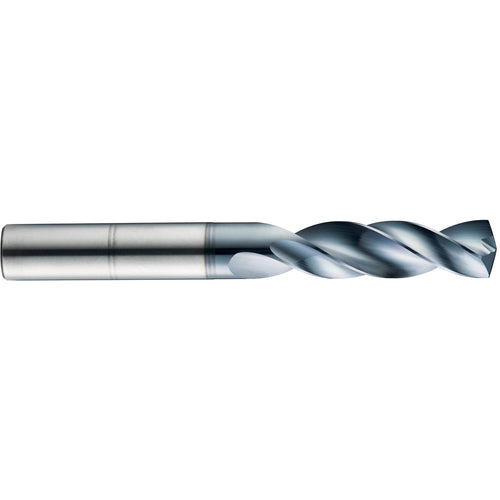

#9 Dia. × 1/4″ Shank × 1″ Flute Length × 2-5/8″ OAL, 3xD, 145°, TA, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9151776
Brand: KYOCERA SGS Precision Tools
Model #: 51776
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #9 |
| Tool Type | Drill |
| Decimal Equivalent | 0.196″ |
| Length Below Shank | 1-7/16″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #9 |
| Flute Type | Spiral |
| Length Group | 3xD |
| Measurement Type | Wire Gauge |
| Coating | TA |
| Series/List # | 135 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 0.8281″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 1″ |
| Point Angle (SIG) | 145 Degrees |
| Overall Length (OAL) | 2-5/8″ |
| Flute Helix Angle (FHA) | 32 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
