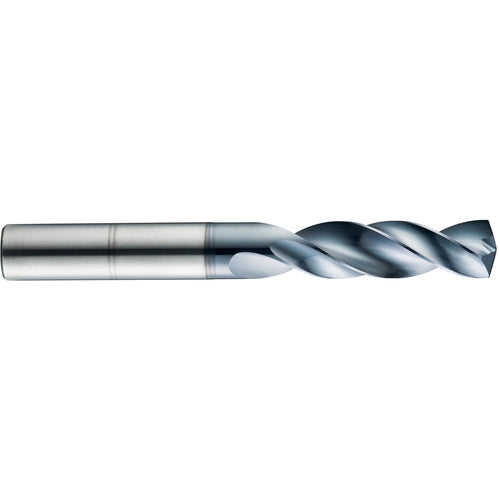

19/64″ Dia. × 5/16″ Shank × 1-9/16″ Flute Length × 3-1/8″ OAL, 3xD, 145°, TA, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9151348
Brand: KYOCERA SGS Precision Tools
Model #: 51348
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 19/64″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 19/64″ |
| Length Below Shank | 1-7/16″ |
| Decimal Equivalent | 0.2969″ |
| Flute Type | Spiral |
| Length Group | 3xD |
| Measurement Type | Inch |
| Coating | TA |
| Series/List # | 135 |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Usable Length (LU) | 1-3/16″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 1-9/16″ |
| Point Angle (SIG) | 145 Degrees |
| Overall Length (OAL) | 3-1/8″ |
| Flute Helix Angle (FHA) | 32 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
