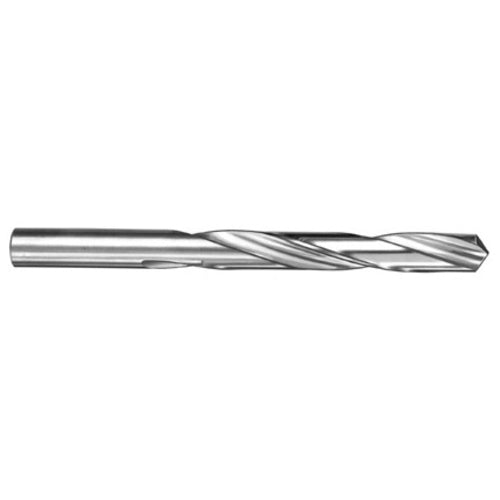

1/32″ Dia. × 1/32″ Shank × 1/2″ Flute Length × 1-1/4″ OAL, 5xD, 118°, Uncoated, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9151102
Brand: KYOCERA SGS Precision Tools
Model #: 51102
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/32″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/32″ |
| Length Below Shank | 3/4″ |
| Decimal Equivalent | 0.0313″ |
| Flute Type | Spiral |
| Length Group | 5xD |
| Measurement Type | Inch |
| Coating | Uncoated |
| Series/List # | 101 |
| Connection Diameter Machine Side (DCONMS) | 1/32″ |
| Usable Length (LU) | 13/32″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 1/2″ |
| Point Angle (SIG) | 118 Degrees |
| Overall Length (OAL) | 1-1/4″ |
| Flute Helix Angle (FHA) | 20 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
