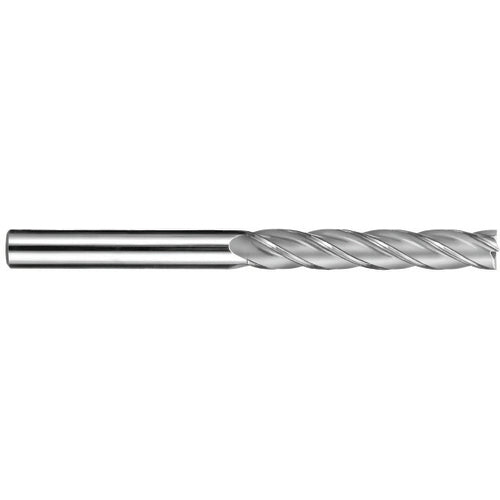

5/16 End Mill 4FL SQ AD - SER E1S 5/16x5/16x1-5/8x4
Item #: DD9093337
Brand: KYOCERA SGS Precision Tools
Model #: 93337
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Usable Length (LU) | 2-3/8″ |
| Overall Length (OAL) | 4″ |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | AD |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
