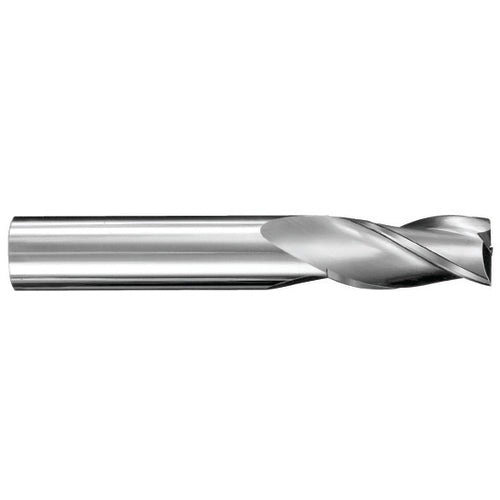

9.0 End Mill 3FL SQ TN - SER 05S 9x10x22x75
Item #: DD9048768
Brand: KYOCERA SGS Precision Tools
Model #: 48768
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Usable Length (LU) | 53 mm |
| Depth of Cut Maximum (APMX) | 22 mm |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 75 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TN |
| Decimal Equivalent | 0.3543″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 05S |
| Shank Type | Round |
