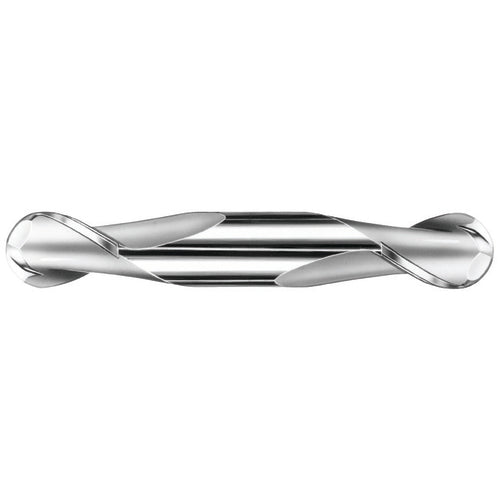

2 mm Dia. × 3 mm Shank × 4 mm DOC × 38 mm OAL, Carbide Uncoated, Spiral , 2 Flute, 30° Helix, Ballnose End Mill
Item #: DD9041514
Brand: KYOCERA SGS Precision Tools
Model #: 41514
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 2 mm |
| Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 4 mm |
| Usable Length (LU) | 34 mm |
| Overall Length (OAL) | 38 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Style | Ball Nose |
| Coating | Uncoated |
| Decimal Equivalent | 0.0787″ |
