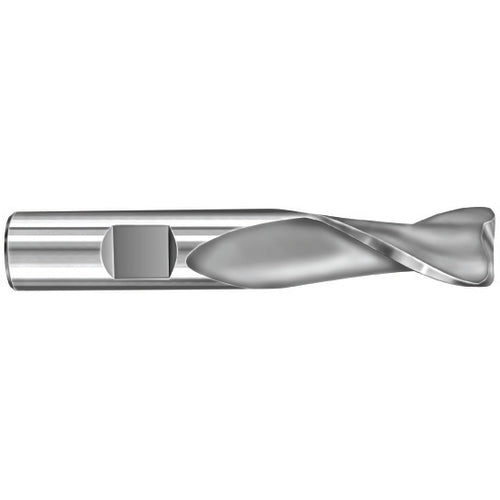

5/8 End Mill 2FL .030R TN WF - SER 03C 5/8x5/8x1-1/4x3-1/2
Item #: DD9038278
Brand: KYOCERA SGS Precision Tools
Model #: 38278
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Shank Type | Flatted |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Usable Length (LU) | 1.7″ |
| Overall Length (OAL) | 3-1/2″ |
| Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 03C |
