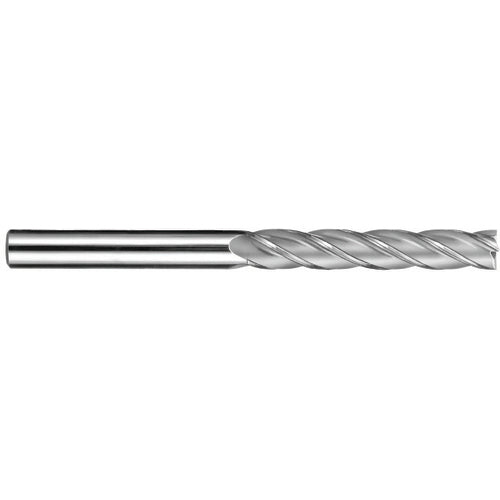

3/16 End Mill 4FL SQ TA - SER E1S 3/16x3/16x1-1/8x3
Item #: DD9031881
Brand: KYOCERA SGS Precision Tools
Model #: 31881
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-1/8″ |
| Usable Length (LU) | 1-7/8″ |
| Overall Length (OAL) | 3″ |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.1875″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
