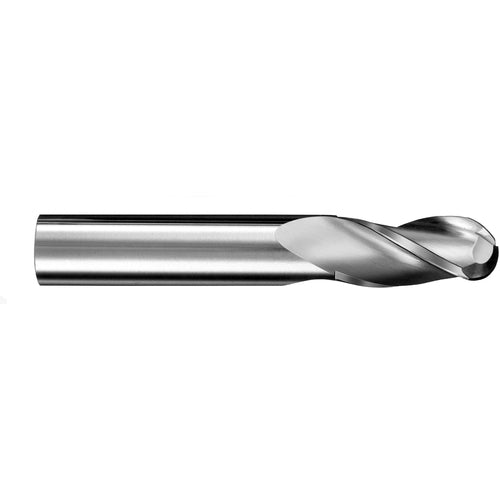

15/64″ Dia. × 1/4″ Shank × 3/4″ DOC × 2-1/2″ OAL, Carbide AlTiN, Spiral , 3 Flute, 30° Helix, Ballnose End Mill
Item #: DD9031144
Brand: KYOCERA SGS Precision Tools
Model #: 31144
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 15/64″ |
| Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Usable Length (LU) | 1-3/4″ |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Style | Ball Nose |
| Coating | AlTiN |
| Decimal Equivalent | 0.234375″ |
