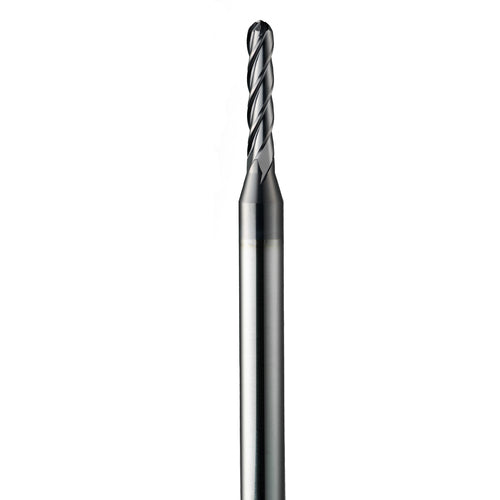

3 mm Dia. × 3 mm Shank × 9 mm DOC × 38 mm OAL, Carbide AlTiN, Spiral , 2 Flute, 30° Helix, Ballnose End Mill
Item #: DD9002959
Brand: KYOCERA SGS Precision Tools
Model #: 02959
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 9 mm |
| Usable Length (LU) | 29 mm |
| Overall Length (OAL) | 38 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Style | Ball Nose |
| Coating | AlTiN |
| Decimal Equivalent | 0.1181″ |
