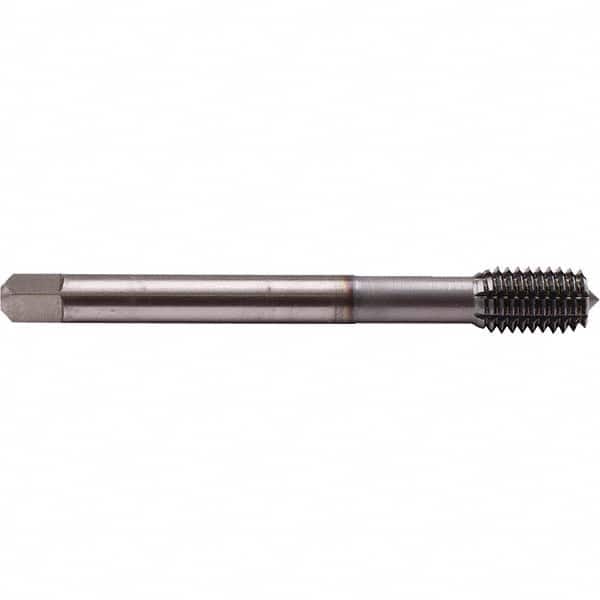

Emuge - #12-24 UNC 2B Bottoming Thread Forming Tap
Item #: 96232681
Brand: Emuge
Model #: BU446F00.5008
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #12-24 |
| Class of Fit | 2B |
| Thread Limit | H4 |
| Chamfer | Bottoming |
| Finish/Coating | TICN-67 |
| Material | Powdered Metal High Speed Steel |
| Overall Length (Decimal Inch) | 3.1500 |
| Thread Standard | UNC |
| Series/List | BU446F00 |
| Neck Length (Decimal Inch) | 1.1420 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.2200 |
| Through Coolant | Yes |
