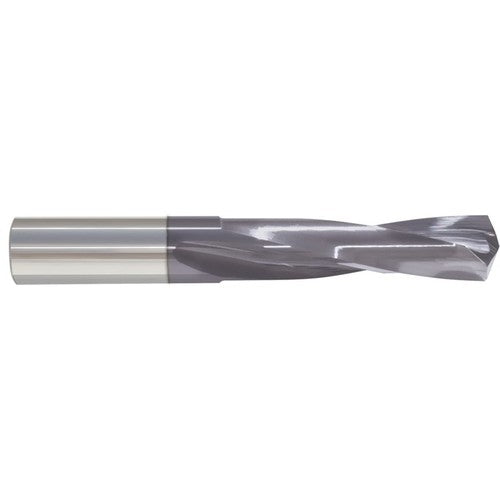

68529 9/64 STUB DRL ALTIN
Item #: DC2768529
Brand: MTC
Model #: 68529
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9/64″ |
| Flute Helix Angle (FHA) | 15 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/64″ |
| Cutting Edge Material | Solid Tungsten Carbide |
| Decimal Equivalent | 0.1406″ |
| Grade | C-2 Sub-Micron |
| Length Group | Stub |
| Point Shape | Drill Point |
| Coating | TiAlN |
| Measurement Type | Inch |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Length Chip Flute (LCF) | 15/16″ |
| Application | Drilling |
| Overall Length (OAL) | 1-15/16″ |
| Connection Diameter Machine Side (DCONMS) | 9/64″ |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 135 Degrees |
| Single / Double End | Single End |
