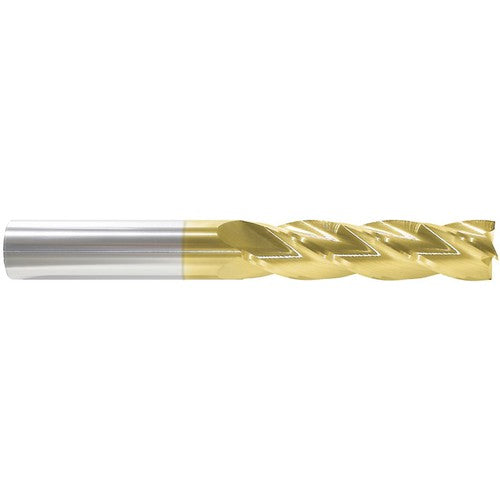

62693 5/8-4F 2-1/4X5 TIN
Item #: DC2662693
Brand: MTC
Model #: 62693
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Applicable Material | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Application | Slotting | Profiling | Ramping |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 5″ |
| Length Group | Long |
| Cutting Edge Material | Solid Tungsten Carbide |
| Decimal Equivalent | 0.625″ |
| Coating | TiN |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Single / Double End | Single End |
| Flute Helix Angle (FHA) | 30 Degrees |
| Center Cutting | Yes |
| End Shape | Square |
