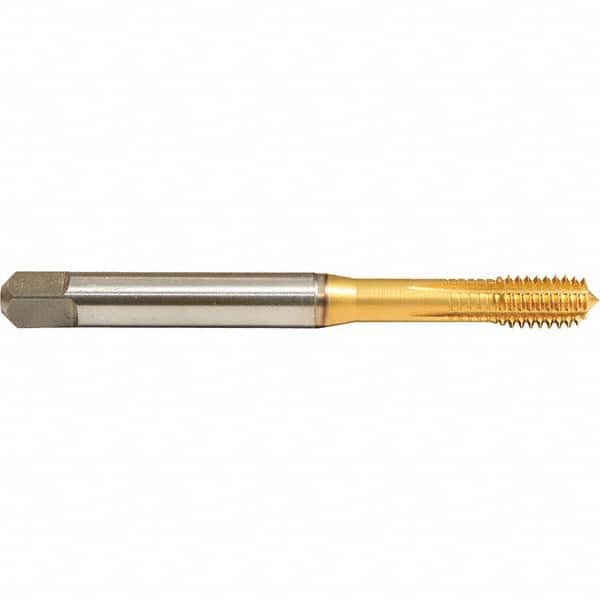

Emuge - 5/16-18 UNC 2BX Bottoming Thread Forming Tap
Item #: 16559130
Brand: Emuge
Model #: BU44Z800.5010
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high-speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/16-18 |
| Class of Fit | 2BX |
| Thread Limit | H5 |
| Chamfer | Bottoming |
| Finish/Coating | TiN |
| Material | Carbide |
| Overall Length (Decimal Inch) | 3.5433 |
| Overall Length (mm) | 90.00 |
| Thread Standard | UNC |
| Neck Length (Decimal Inch) | 1.3386 |
| Tapping Depth (Decimal Inch) | 0.9375 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Through Coolant | Yes |
