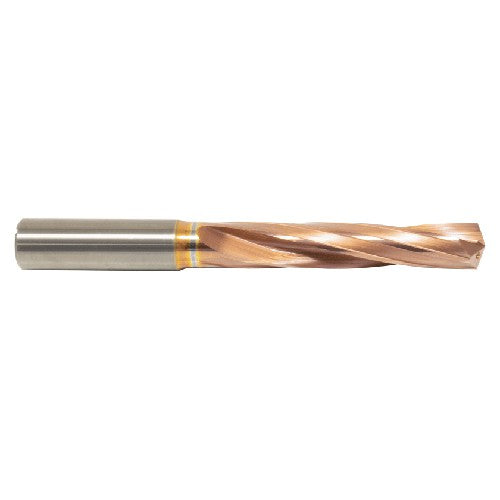

Precision Cutting Tools 130° SELF CENTERING POINT, SINGLE MARGIN
Item #: CW8110140
Brand: Precision Cutting Tools
Model #: 9584735
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.5906″ |
| Shape | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.5906″ |
| Tool Type | Solid Carbide Drill |
| Decimal Equivalent | 0.5906″ |
| Flute Type | Helical |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15 mm |
| Measurement Type | Inch |
| Length Group | 3xD |
| Series/List # | CX |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Usable Length (LU) | 2.6141″ |
| Point Angle (SIG) | 130 Degrees |
| Length Chip Flute (LCF) | 3-1/2″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Overall Length (OAL) | 6″ |
| Number of Teeth | 3 |
| Flute Count (NOF) | 3 |
| Shank Length (LS) | 2-1/2″ |
| Feature | SINGLE-MARGIN DRILL |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Shank Standard | h6 |
| Body Material | Carbide |
