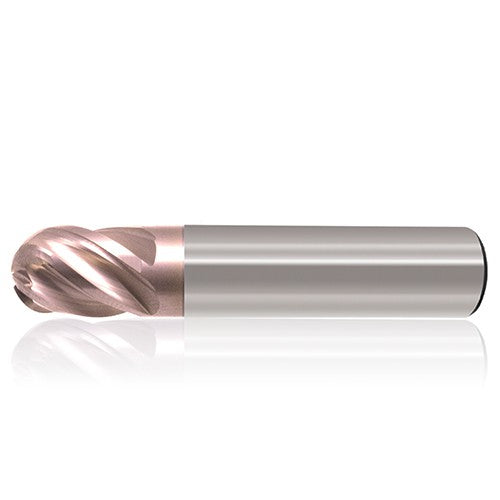

DC 1/2″ x DCONMS 1/2″ x APMX 2″ x OAL 4″
Item #: CW8059324
Brand: Precision Cutting Tools
Model #: 9584603
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Corner Radius (RE) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Number of Teeth | 5 |
| Depth of Cut Maximum (APMX) | 2″ |
| Grade | H5003 Vulcan |
| Overall Length (OAL) | 4″ |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| End Shape | Ballnose |
| Coating | VARIANTIC |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 2″ |
| Measurement Type | Inch |
| Applicable Material | | Cast Iron | Hard Materials | Hi Temp Alloys | Stainless Steel | Steel | |
| Shank Size (SS) | 1/2″ |
| Application | | Finish | HEM | Profiling | Semi Finish | |
