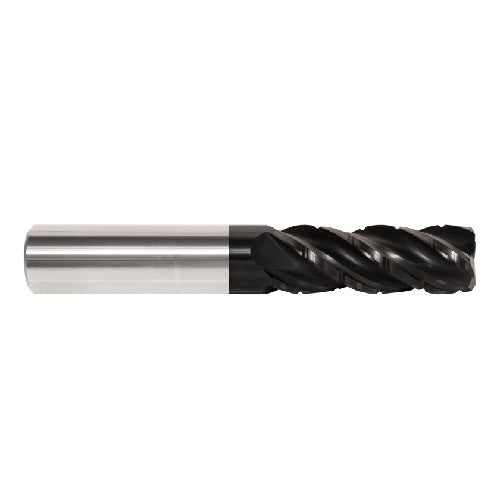

DC 3/8″ x DCONMS 3/8″ x APMX 1″ x OAL 3″
Item #: CW8059040
Brand: Precision Cutting Tools
Model #: 9584590
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Number of Teeth | 5 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Grade | H5003 |
| Depth of Cut Maximum (APMX) | 1″ |
| Length Group | Long |
| Overall Length (OAL) | 3″ |
| End Shape | Ballnose |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | VARIANTIC |
| Shank Standard | h6 |
| Flute Count (NOF) | 5 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees |
| Decimal Equivalent | 0.375″ |
| Shank Type | Round |
| Measurement Type | Inch |
| Usable Length (LU) | 1″ |
| Series/List # | 577 |
| Application | | Finish | HEM | Roughing | Semi Finish | Slotting | |
| Shank Size (SS) | 3/8″ |
| Corner Radius (RE) | 0.188″ |
