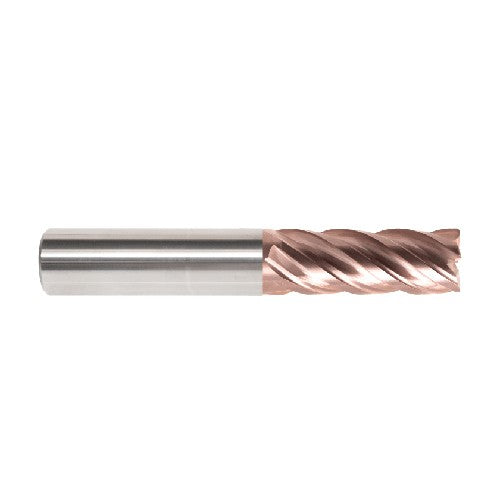

Precision Cutting Tools 577 SERIES 5 FLUTE FOR TOOL STEELS, DUPLEX, PH STAINLESS, & HRSAs
Item #: CW8058958
Brand: Precision Cutting Tools
Model #: 9584372
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Grade | H5003 Vulcan |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Overall Length (OAL) | 5″ |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Long |
| Coating | VARIANTIC |
| Shank Standard | h6 |
| Flute Count (NOF) | 5 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees |
| Decimal Equivalent | 1″ |
| Shank Type | Round |
| Measurement Type | Inch |
| End Shape | Corner Radius |
| Series/List # | 577 |
| Usable Length (LU) | 2-1/4″ |
| Shank Size (SS) | 1″ |
| Application | | Finish | HEM | Semi Finish | |
