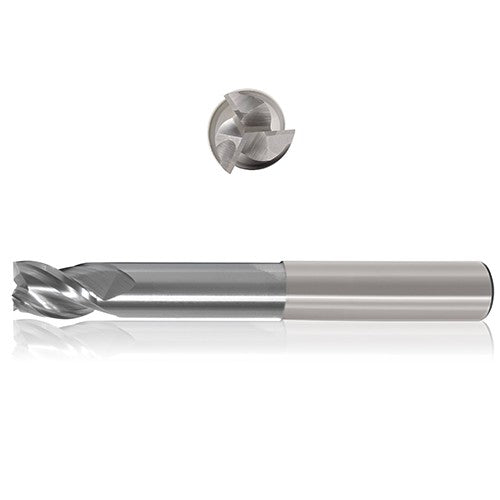

DC 3/8″ x DCONMS 3/8″ x APMX 1/2″ x OAL 3″
Item #: CW8058813
Brand: Precision Cutting Tools
Model #: 9548429
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Neck Diameter (DN) | 0.36 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ |
| Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Cutting Edge Material | Carbide |
| Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | Ta-C |
| Length Group | Stub - Necked |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees |
| Shank Standard | h6 |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Square |
| Style | Necked |
| Usable Length (LU) | 1-1/8″ |
| Decimal Equivalent | 0.375″ |
| Applicable Material | | Aluminum | Non Ferrous Metals | |
| Measurement Type | Inch |
| Application | Finishing | HEM | HPM | Roughing | Semi Finishing | Shouldering | Slotting |
| Series/List # | H337 |
| Grade | A5005 Exxtral Carbon (DLC) |
| Shank Size (SS) | 3/8″ |
