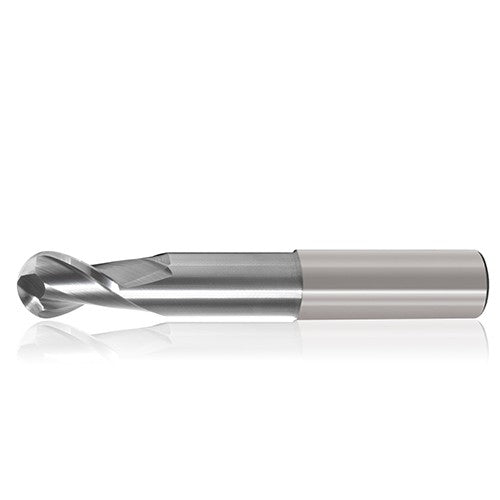

DC 3/4″ x DCONMS 3/4″ x APMX 1″ x OAL 4″
Item #: CW8058802
Brand: Precision Cutting Tools
Model #: 9548351
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Grade | A5005 Exxtral Carbon (DLC) |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 1″ |
| Length Group | Stub - Necked |
| Overall Length (OAL) | 4″ |
| End Shape | Ballnose |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Ta-C |
| Shank Standard | h6 |
| Flute Count (NOF) | 2 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees |
| Style | Necked |
| Shank Type | Round |
| Decimal Equivalent | 0.75″ |
| Usable Length (LU) | 2″ |
| Measurement Type | Inch |
| Applicable Material | | Aluminum | Non Ferrous Metals | |
| Series/List # | H235 |
| Application | | Finish | HEM | HPM | Profiling | Roughing | Semi Finish | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.007 ″/tooth |
| Corner Radius (RE) | 3/8″ |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Neck Diameter (DN) | 0.725 |
| Shank Size (SS) | 3/4″ |
| Number of Teeth | 2 |
