DC 5/8″ x DCONMS 5/8″ x APMX 1″ x OAL 6″
Item #: CW8058644
Brand: Precision Cutting Tools
Model #: 9585601
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Grade | A5009 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |

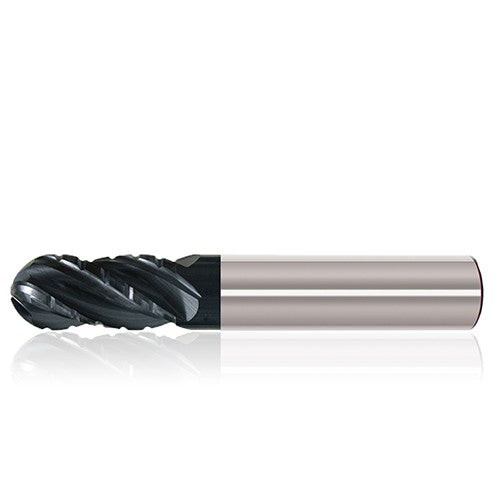

| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 1″ |
| Length Group | Long - Necked |
| Overall Length (OAL) | 6″ |
| End Shape | Ballnose |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TiAICN |
| Shank Standard | h6 |
| Flute Count (NOF) | 4 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees |
| Style | Necked |
| Shank Type | Round |
| Decimal Equivalent | 0.625″ |
| Usable Length (LU) | 4″ |
| Measurement Type | Inch |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | |
| Series/List # | 453 |
| Application | | HEM | Profiling | Roughing | Semi Finish | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Corner Radius (RE) | 5/16″ |
| Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Neck Diameter (DN) | 0.6 |
| Shank Size (SS) | 5/8″ |
| Number of Teeth | 4 |
