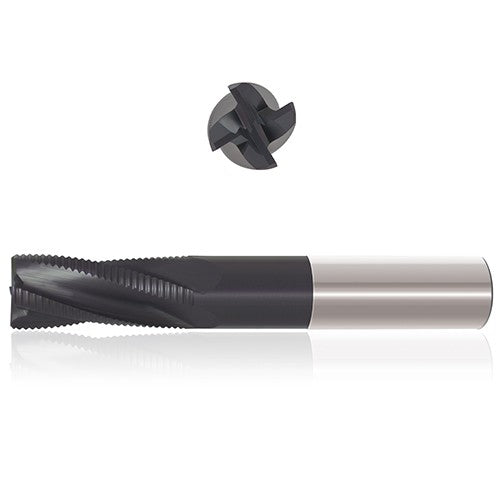

DC 1/4″ x DCONMS 1/4″ x APMX 1/2″ x OAL 3″
Item #: CW8058448
Brand: Precision Cutting Tools
Model #: 9585480
Product Specifications | |
---|---|
Cutting Diameter (DC) | 1/4″ |
Grade | A5009 |
Connection Diameter Machine Side (DCONMS) | 1/4″ |
Tool Type | Solid Carbide Endmill |
Depth of Cut Maximum (APMX) | 1/2″ |
Length Group | Stub - Necked |
Overall Length (OAL) | 3″ |
End Shape | Ballnose |
Coating | Varianta Supral |
Coolant Supply Property (CSP) | External |
Flute Count (NOF) | 4 |
Shank Standard | h6 |
Flute Helix Angle (FHA) | 20 Degrees |
Body Material | Carbide |
Shank Type | Cylindrical |
Style | Necked |
Usable Length (LU) | 1-1/4″ |
Decimal Equivalent | 0.25″ |
Applicable Material | Super-Alloys / Titanium |
Measurement Type | Inch |
Application | | Roughing | Semi Finish | |
Series/List # | 423 |
Corner Radius (RE) | 1/8″ |
Maximum Feed per Tooth (fz(max)) | 0.002 ″/tooth |
Neck Diameter (DN) | 0.235 |
Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
Number of Teeth | 4 |
Shank Size (SS) | 1/4″ |
