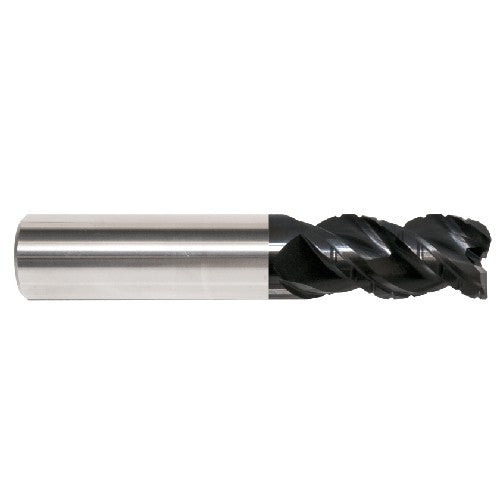

DC 1/2″ x DCONMS 1/2″ x APMX 1-1/4″ x OAL 3″
Item #: CW8058432
Brand: Precision Cutting Tools
Model #: 9586171
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Length Group | Standard |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| End Shape | Ballnose |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3″ |
| Shank Standard | h6 |
| Flute Count (NOF) | 3 |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 1-1/4″ |
| Measurement Type | Inch |
| Application | | Finish | HEM | Roughing | Semi Finish | Slotting | |
| Series/List # | 363 |
| Corner Radius (RE) | 1/4″ |
| Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Number of Teeth | 3 |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Tool Type | Solid Carbide Endmill |
| Shank Size (SS) | 1/2″ |
