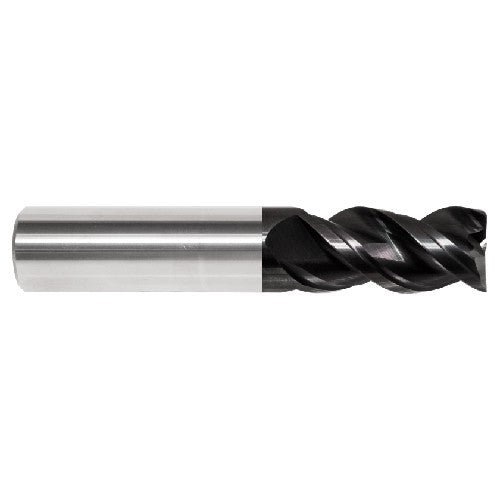

Precision Cutting Tools 360 SERIES 3 FLUTE FOR ALUMINUM & NON FERROUS MATERIAL (VARIABLE
Item #: CW8058401
Brand: Precision Cutting Tools
Model #: 9525279
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 1″ |
| Maximum Feed per Tooth (fz(max)) | 0.011 ″/tooth |
| Overall Length (OAL) | 3″ |
| Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Cutting Edge Material | Carbide |
| Length Group | Stub |
| Coating | Ta-C |
| Shank Standard | h6 |
| Flute Count (NOF) | 3 |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.75″ |
| End Shape | Square |
| Measurement Type | Inch |
| Usable Length (LU) | 1″ |
| Series/List # | 360 |
| Application | | Finish | HEM | Roughing | Semi Finish | Slotting | |
| Shank Size (SS) | 3/4″ |
| Grade | A5005 Exxtral Carbon (DLC) |
