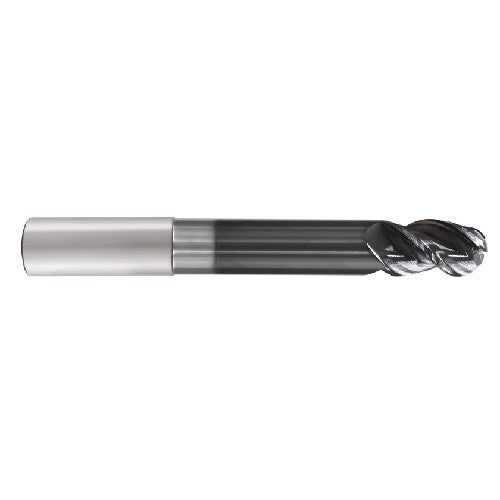

DC 5/16″ x DCONMS 5/16″ x APMX 7/8″ x OAL 2-1/2″
Item #: CW8058260
Brand: Precision Cutting Tools
Model #: 9524655
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Grade | A5005 Exxtral Carbon (DLC) |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Length Group | Standard |
| Overall Length (OAL) | 2-1/2″ |
| End Shape | Ballnose |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Ta-C |
| Shank Standard | h6 |
| Flute Count (NOF) | 3 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees |
| Decimal Equivalent | 0.3125″ |
| Shank Type | Round |
| Measurement Type | Inch |
| Usable Length (LU) | 7/8″ |
| Series/List # | 345 |
| Application | | Finish | HEM | Semi Finish | |
| Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Corner Radius (RE) | 0.1563″ |
| Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Number of Teeth | 3 |
| Shank Size (SS) | 5/16″ |
