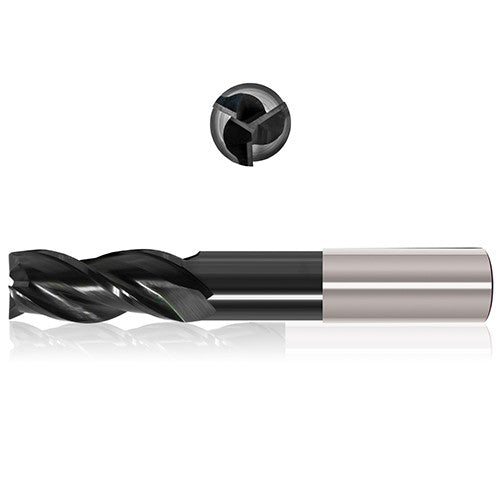

DC 3/4″ x DCONMS 3/4″ x APMX 1-1/4″ x OAL 6″
Item #: CW8058147
Brand: Precision Cutting Tools
Model #: 9585394
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Tool Type | Solid Carbide Endmill |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Maximum Feed per Tooth (fz(max)) | 0.01 ″/tooth |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Overall Length (OAL) | 6″ |
| Length Group | Long - Necked |
| Flute Count (NOF) | 3 |
| Shank Standard | h6 |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Style | Necked |
| End Shape | Square |
| Decimal Equivalent | 0.75″ |
| Usable Length (LU) | 4″ |
| Measurement Type | Inch |
| Application | Finishing | HEM | Roughing | Semi Finishing | Slotting |
| Series/List # | 337 |
| Neck Diameter (DN) | 0.725 |
| Shank Size (SS) | 3/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
