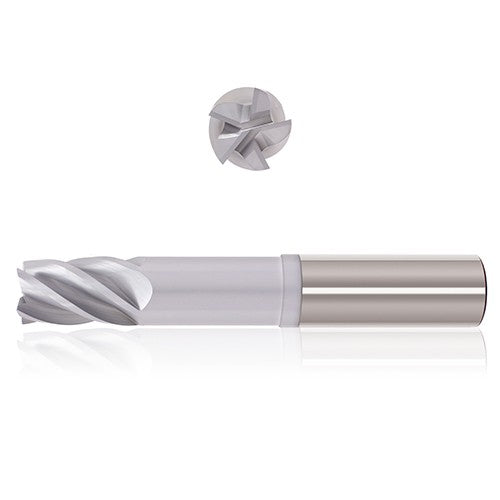

DC 1″ x DCONMS 1″ x APMX 1-1/2″ x OAL 8″
Item #: CW8057834
Brand: Precision Cutting Tools
Model #: 9586109
Product Specifications | |
---|---|
Cutting Diameter (DC) | 1″ |
Neck Diameter (DN) | 0.97 |
Connection Diameter Machine Side (DCONMS) | 1″ |
Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
Depth of Cut Maximum (APMX) | 1-1/2″ |
Tool Type | Solid Carbide Endmill |
Overall Length (OAL) | 8″ |
Maximum Feed per Tooth (fz(max)) | 0.014 ″/tooth |
Cutting Edge Material | Carbide |
Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
Coating | AITiCrN |
Length Group | Extra Long - Necked |
Flute Count (NOF) | 5 |
Coolant Supply Property (CSP) | External |
Flute Helix Angle (FHA) | 35 Degrees |
Shank Standard | h6 |
Shank Type | Round |
Body Material | Carbide |
End Shape | Corner Radius |
Style | Necked |
Usable Length (LU) | 6″ |
Decimal Equivalent | 1″ |
Applicable Material | | Cast Iron | Hard Materials | Hi Temp Alloys | Stainless Steel | Steel | |
Measurement Type | Inch |
Application | Finishing | HEM | Semi Finishing | Shouldering |
Series/List # | 558 |
Corner Radius (RE) | 1/8″ |
Shank Size (SS) | 1″ |
Grade | H5008 Exxtral Silver |
