DC 3/8″ x DCONMS 3/8″ x APMX 2-1/2″ x OAL 6″
Item #: CW8057801
Brand: Precision Cutting Tools
Model #: 9586101
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Grade | H5008 Exxtral Silver |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Depth of Cut Maximum (APMX) | 2-1/2″ |

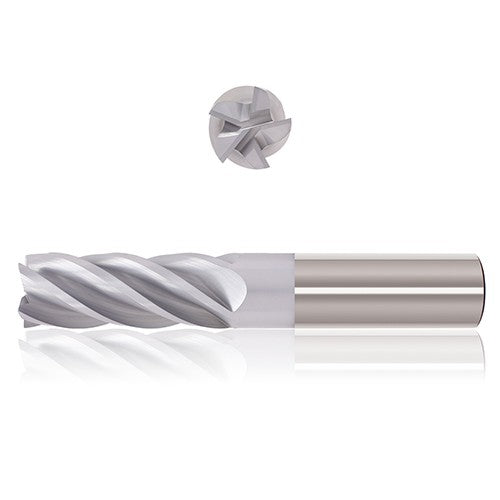

| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 6″ |
| Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Cutting Edge Material | Carbide |
| Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | AITiCrN |
| Length Group | 3 Extra Long |
| Flute Count (NOF) | 5 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 35 Degrees |
| Shank Standard | h6 |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Decimal Equivalent | 0.375″ |
| Usable Length (LU) | 2-1/2″ |
| Measurement Type | Inch |
| Applicable Material | | Cast Iron | Hard Materials | Hi Temp Alloys | Stainless Steel | Steel | |
| Series/List # | 558 |
| Application | Finishing | HEM | Semi Finishing | Shouldering |
| Shank Size (SS) | 3/8″ |
| Corner Radius (RE) | 1/8″ |
