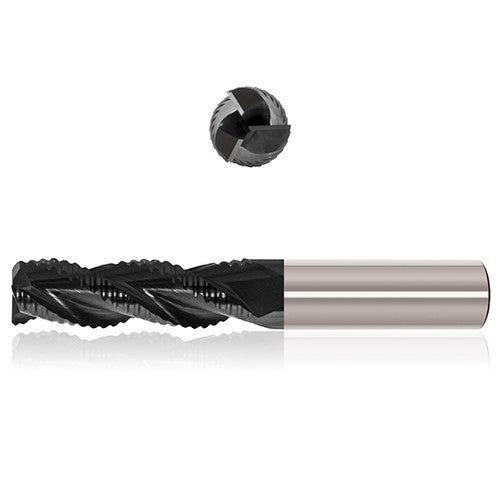

DC 1-1/4″ x DCONMS 1-1/4″ x APMX 2″ x OAL 4-1/2″
Item #: CW8057613
Brand: Precision Cutting Tools
Model #: 9586084
Product Specifications | |
---|---|
Cutting Diameter (DC) | 1-1/4″ |
Grade | A5005 Exxtral Carbon (DLC) |
Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
Depth of Cut Maximum (APMX) | 2″ |
Tool Type | Solid Carbide Endmill |
Overall Length (OAL) | 4-1/2″ |
Maximum Feed per Tooth (fz(max)) | 0.017 ″/tooth |
Cutting Edge Material | Carbide |
Minimum Feed per Tooth (fz(min)) | 0.006 ″/tooth |
Coating | Ta-C |
Length Group | Stub |
Flute Count (NOF) | 3 |
Coolant Supply Property (CSP) | External |
Flute Helix Angle (FHA) | 37 Degrees |
Shank Standard | h6 |
Shank Type | Round |
Body Material | Carbide |
End Shape | Corner Radius |
Decimal Equivalent | 1.25″ |
Usable Length (LU) | 2″ |
Measurement Type | Inch |
Applicable Material | | Aluminum | Non Ferrous Metals | |
Series/List # | 338 |
Application | HEM | Roughing | Semi Finishing | Shouldering | Slotting |
Shank Size (SS) | 1-1/4″ |
Corner Radius (RE) | 1/8″ |
