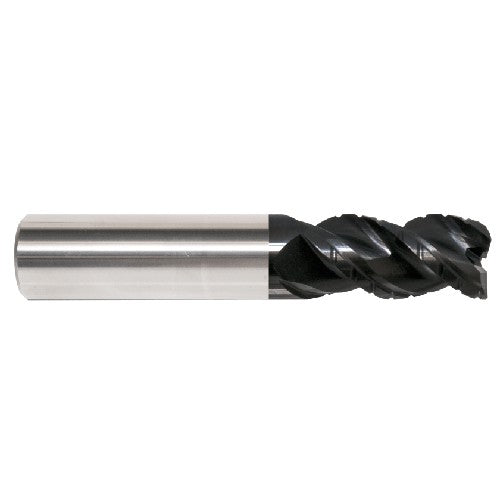

Precision Cutting Tools 363 SERIES 3 FLUTE WITH CHIPBREAKERS FOR ALUMINUM
Item #: CW8057407
Brand: Precision Cutting Tools
Model #: 9586055
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Tool Type | Solid Carbide Endmill |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Maximum Feed per Tooth (fz(max)) | 0.01 ″/tooth |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Minimum Feed per Tooth (fz(min)) | 0.005 ″/tooth |
| Overall Length (OAL) | 6″ |
| Length Group | Standard - Necked |
| Flute Count (NOF) | 3 |
| Shank Standard | h6 |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Style | Necked |
| Usable Length (LU) | 4″ |
| Decimal Equivalent | 1″ |
| Application | | Finish | HEM | Roughing | Semi Finish | Slotting | |
| Measurement Type | Inch |
| Corner Radius (RE) | 0.09″ |
| Series/List # | 363 |
| Neck Diameter (DN) | 0.97 |
| Shank Size (SS) | 1″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
