DC 1″ x DCONMS 1″ x APMX 1-1/4″ x OAL 3″
Item #: CW8056989
Brand: Precision Cutting Tools
Model #: 9507832
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Grade | A5009 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Depth of Cut Maximum (APMX) | 1-1/4″ |

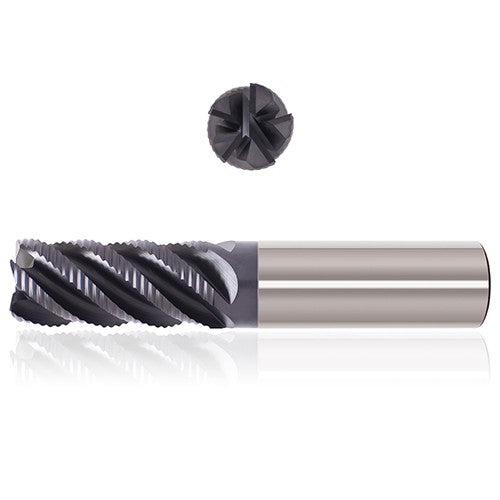

| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ |
| Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
| Cutting Edge Material | Carbide |
| Minimum Feed per Tooth (fz(min)) | 0.004 ″/tooth |
| Coating | TiAICN |
| Length Group | Stub |
| Flute Count (NOF) | 5 |
| Shank Standard | h6 |
| Flute Helix Angle (FHA) | 45 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 1″ |
| End Shape | Corner Radius |
| Measurement Type | Inch |
| Usable Length (LU) | 1-1/4″ |
| Series/List # | 429 |
| Application | Roughing | Semi Finishing |
| Shank Size (SS) | 1″ |
| Corner Radius (RE) | 0.06″ |
