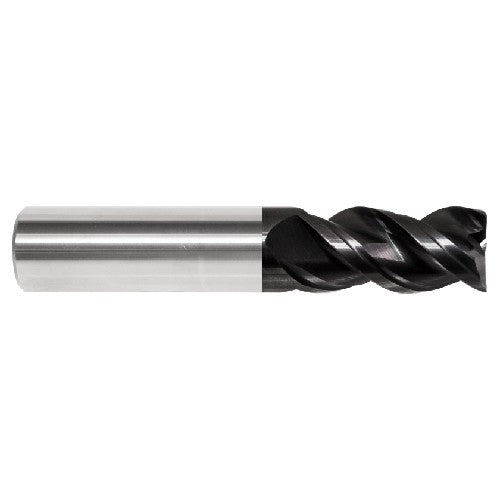

Precision Cutting Tools 360 SERIES 3 FLUTE FOR ALUMINUM & NON FERROUS MATERIAL (VARIABLE
Item #: CW8056914
Brand: Precision Cutting Tools
Model #: 9507487
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Grade | A5005 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Neck Diameter (DN) | 0.235 |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Overall Length (OAL) | 4″ |
| Length Group | Standard - Necked |
| Cutting Edge Material | Carbide |
| Shank Standard | h6 |
| Coating | Ta-C |
| Body Material | Carbide |
| Flute Count (NOF) | 3 |
| Style | Necked |
| Shank Type | Round |
| Decimal Equivalent | 0.25″ |
| End Shape | Corner Radius |
| Measurement Type | Inch |
| Usable Length (LU) | 2-1/8″ |
| Series/List # | 360 |
| Application | | Finish | HEM | Roughing | Semi Finish | Slotting | |
| Shank Size (SS) | 1/4″ |
| Corner Radius (RE) | 0.06″ |
