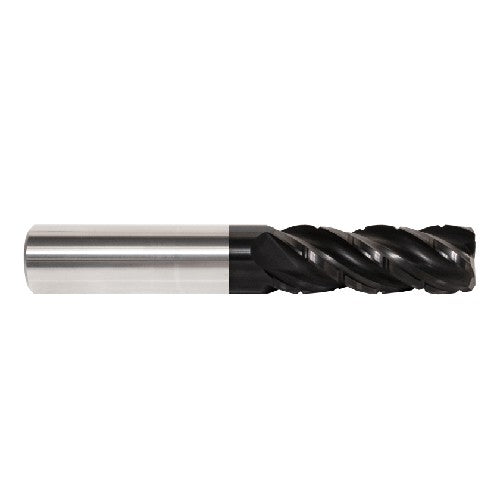

Precision Cutting Tools 453 SERIES 4 FLUTE WITH CHIPBREAKERS FOR CAST IRON, STEELS
Item #: CW8056662
Brand: Precision Cutting Tools
Model #: 9581842
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Neck Diameter (DN) | 0.48 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 5″ |
| Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Edge Material | Carbide |
| Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | TiAICN |
| Length Group | Long - Necked |
| Flute Count (NOF) | 4 |
| Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Style | Necked |
| End Shape | Corner Radius |
| Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 3-1/8″ |
| Measurement Type | Inch |
| Application | | Finish | Roughing | Semi Finish | Slotting | |
| Series/List # | 453 |
| Corner Radius (RE) | 0.03″ |
| Shank Size (SS) | 1/2″ |
| Grade | A5009 Varianta Supral |
