DC 5/8″ x DCONMS 5/8″ x APMX 1″ x OAL 4″
Item #: CW8056573
Brand: Precision Cutting Tools
Model #: 9581786
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Neck Diameter (DN) | 0.6 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 1″ |

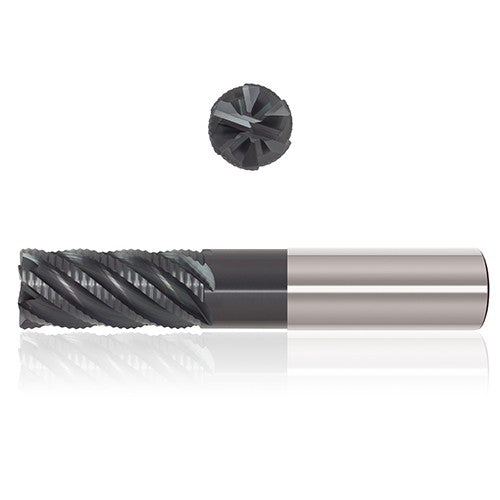

| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ |
| Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Edge Material | Carbide |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | TiAICN |
| Length Group | Stub - Necked |
| Flute Count (NOF) | 4 |
| Shank Standard | h6 |
| Flute Helix Angle (FHA) | 40 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Style | Necked |
| End Shape | Corner Radius |
| Decimal Equivalent | 0.625″ |
| Usable Length (LU) | 2″ |
| Measurement Type | Inch |
| Application | Roughing |
| Series/List # | 430 |
| Corner Radius (RE) | 0.03″ |
| Shank Size (SS) | 5/8″ |
| Grade | A5009 Varianta Supral |
