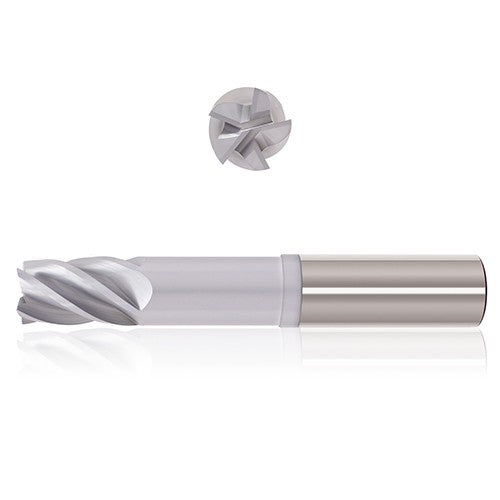

‎DC 1″ x DCONMS 1″ x APMX 1-1/2″ x OAL 8″

‎DC 1″ x DCONMS 1″ x APMX 1-1/2″ x OAL 8″


Item #: CW8056291
Brand: Precision Cutting Tools
Model #: 9581586

Product Specifications
Cutting Diameter (DC) 1″
Neck Diameter (DN) 0.97
Connection Diameter Machine Side (DCONMS) 1″
Peripheral Effective Cutting Edge Count (ZEFP) 5
Depth of Cut Maximum (APMX) ‎1-1/2″
Tool Type Solid Carbide Endmill
Overall Length (OAL) 8″
Maximum Feed per Tooth (fz(max)) 0.014 ″/tooth
Cutting Edge Material Carbide
Minimum Feed per Tooth (fz(min)) 0.002 ″/tooth
Coating AITiCrN
Length Group Extra Long - Necked
Flute Count (NOF) 5
Coolant Supply Property (CSP) External
Flute Helix Angle (FHA) 35 Degrees
Shank Standard h6
Shank Type Round
Body Material Carbide
End Shape Corner Radius
Style Necked
Usable Length (LU) 6″
Decimal Equivalent 1″
Applicable Material | Cast Iron | Hard Materials | Hi Temp Alloys | Stainless Steel | Steel |
Measurement Type Inch
Application Finishing | HEM | Semi Finishing | Shouldering
Series/List # 558
Corner Radius (RE) 0.015″
Shank Size (SS) 1″
Grade H5008 Exxtral Silver
$793.17

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
