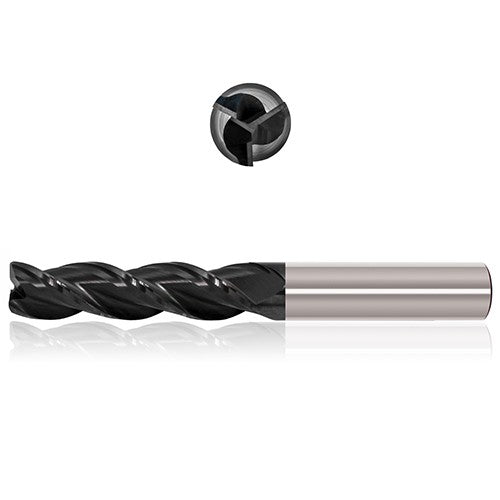

DC 1/2″ x DCONMS 1/2″ x APMX 1-1/4″ x OAL 3″
Item #: CW800337T508125
Brand: Precision Cutting Tools
Model #: 9523081
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Grade | A5005 Exxtral Carbon (DLC) |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ |
| Maximum Feed per Tooth (fz(max)) | 0.007 ″/tooth |
| Cutting Edge Material | Carbide |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | Ta-C |
| Length Group | Standard |
| Flute Count (NOF) | 3 |
| Shank Standard | h6 |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.5″ |
| End Shape | Square |
| Measurement Type | Inch |
| Usable Length (LU) | 1-1/4″ |
| Series/List # | 337 |
| Application | Finishing | HEM | Roughing | Semi Finishing | Slotting |
| Shank Size (SS) | 1/2″ |
