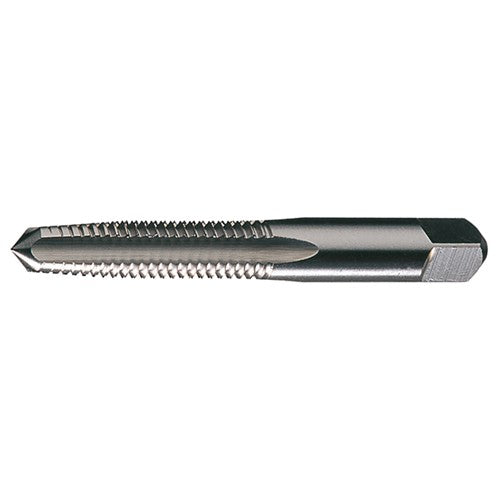

M14x2.0 4 Flute HSS Standard Bottoming Chamfer Hand Tap- Bright
Item #: CL71C63243
Brand: Cle-Line
Model #: C63243
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M14 |
| Chamfer | Bottoming |
| Thread Pitch (TP) | 2 mm |
| Coating | Bright |
| Thread Standard | Metric |
| Flute Type | Straight |
| Overall Length (OAL) | 91.28 mm |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 42.07 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 10.9 mm |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Length Group | 1.5D |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D7 |
| Series/List # | 0403M |
| Tool Type | Hand Tap |
| Thread Size | M14 × 2 |
