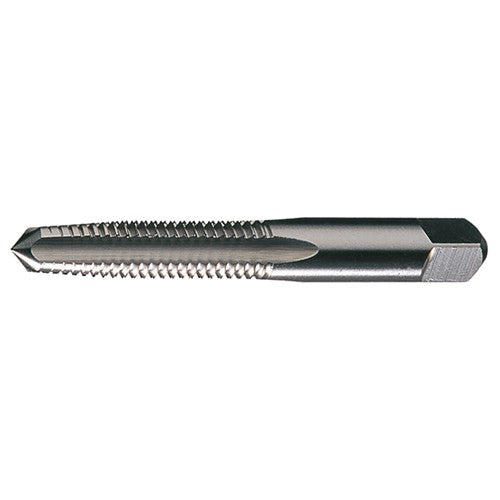

M7x1.0 4 Flute HSS Standard Bottoming Chamfer Hand Tap- Bright
Item #: CL71C63227
Brand: Cle-Line
Model #: C63227
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M7 |
| Chamfer | Bottoming |
| Thread Pitch (TP) | 1 mm |
| Coating | Bright |
| Thread Standard | Metric |
| Flute Type | Straight |
| Overall Length (OAL) | 69.06 mm |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 28.57 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 8.08 mm |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Length Group | 1.5D |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D5 |
| Series/List # | 0403M |
| Tool Type | Hand Tap |
| Thread Size | M7 × 1 |
