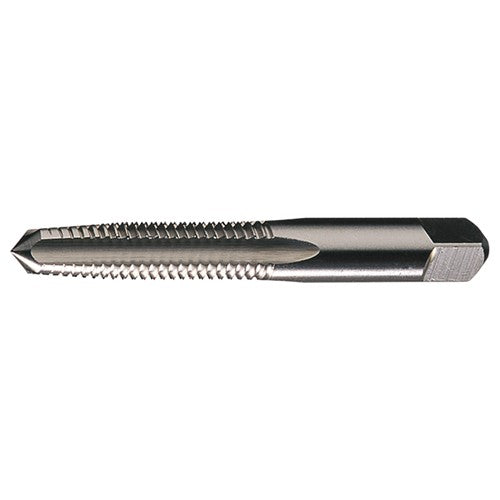

#5-40 UNC 3 Flute HSS Standard Plug Chamfer Hand Tap- Bright
Item #: CL71C62006
Brand: Cle-Line
Model #: C62006
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #5 |
| Chamfer | Plug |
| Threads per Inch (TPI) | 40 |
| Coating | Bright |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 1-15/16″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 5/8″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Length Group | 1.5D |
| Cutting Edge Material | HSS |
| Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | H2 |
| Series/List # | 0402 |
| Tool Type | Hand Tap |
| Thread Size | #5 - 40 |
