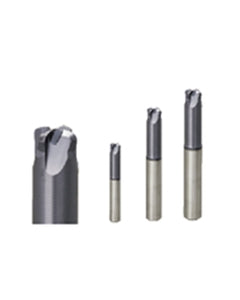

EFF-S6-06 025/20C06R0.7M IC902
Item #: EH563357989
Brand: Iscar
Model #: 3357989
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Application | Fast Feed Milling | Helical Interpolation | Profiling | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Corner Radius (RE) | 0.4 mm |
| Depth of Cut Maximum (APMX) | 0.35 mm |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Overall Length (OAL) | 57 mm |
| Grade | IC902 |
| Cutting Edge Material | Carbide |
| Tool Type | Fast Feed Solid Endmill |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Flute Count (NOF) | 6 |
| Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Measurement Type | Metric |
| Usable Length (LU) | 20 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
