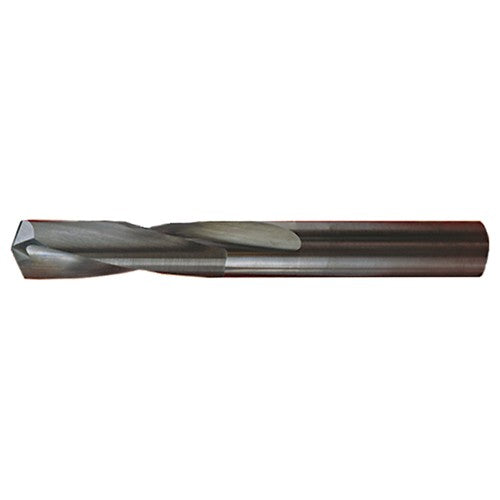

#6 Dia. × 0.204″ Shank × 3/4″ Flute Length × 2-1/4″ OAL, Stub, 118°, Bright, 2xD Flute, Round Solid Carbide Drill
Item #: CH2078645
Brand: Chicago-Latrobe
Model #: 78645
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #6 |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.219″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #6 |
| Flute Type | Spiral |
| Length Group | Stub |
| Point Shape | 4 Facet |
| Coating | Bright |
| Measurement Type | Wire Gauge |
| Connection Diameter Machine Side (DCONMS) | 7/32″ |
| Series/List # | 759 |
| Point Angle (SIG) | 118 Degrees |
| Length Chip Flute (LCF) | 19/32″ |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 2″ |
| Shank Length (LS) | 1-13/32″ |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Shape | Solid Carbide |
