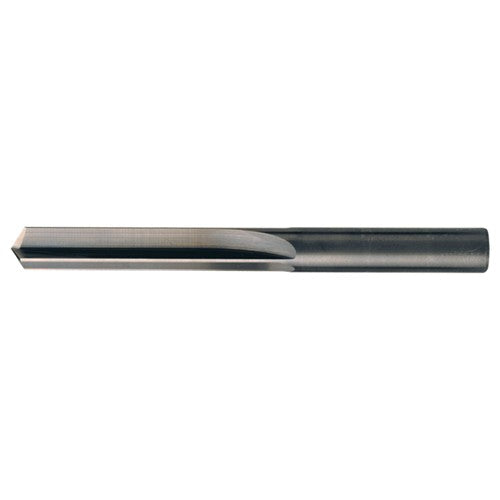

9/64″ Dia. × 0.141″ Shank × 15/16″ Flute Length × 1-15/16″ OAL, 140°, Bright, 2xD Flute, Round Solid Carbide Drill
Item #: CH2078593
Brand: Chicago-Latrobe
Model #: 78593
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9/64″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/64″ |
| Tool Type | Drill |
| Decimal Equivalent | 0.209″ |
| Flute Type | Straight |
| Length Group | Standard |
| Point Shape | 4 Facet |
| Coating | Bright |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.209″ |
| Series/List # | 769 |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 1-1/4″ |
| Shank Length (LS) | 1-1/8″ |
| Overall Length (OAL) | 2-3/8″ |
| Shank Type | Round |
| Flute Count (NOF) | 2 |
| Shape | Solid Carbide |
| Cutting Direction (HAND) | Right Hand |
